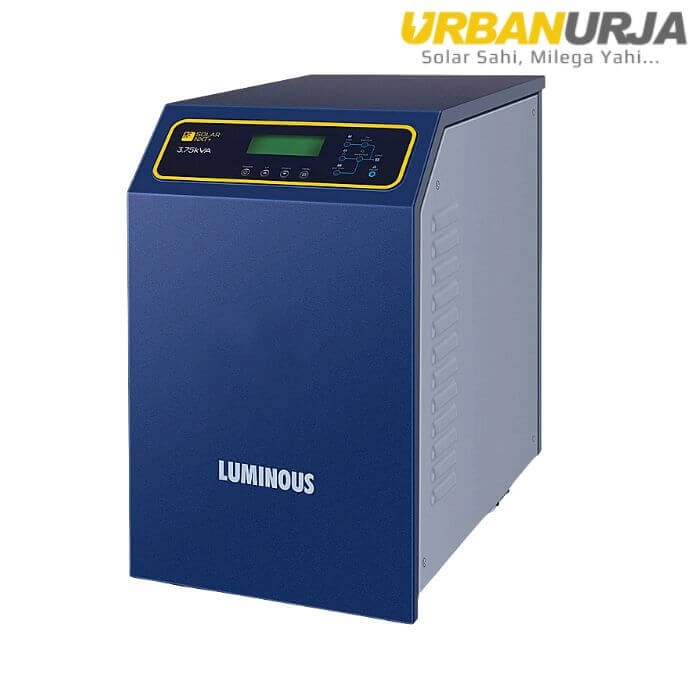

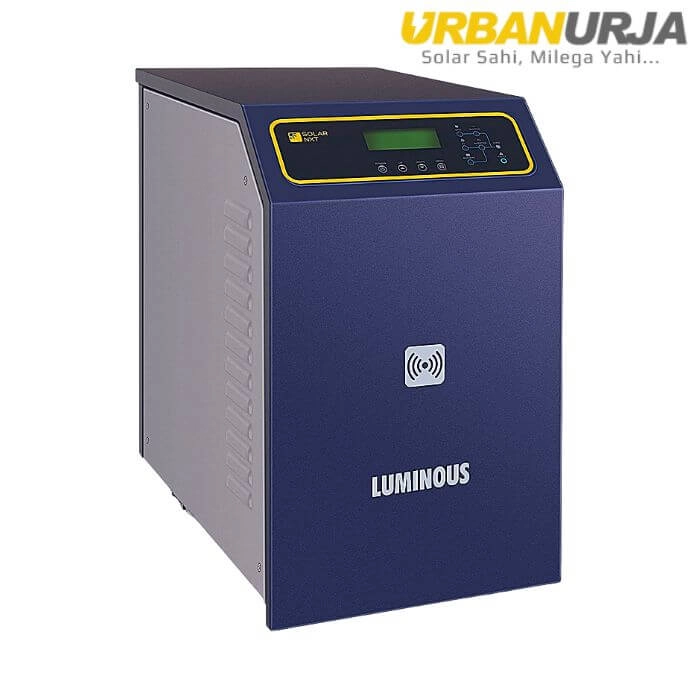

Luminous NXT+ 3.75 kVA 48V MPPT Solar PCU Inverter

Brand: Luminous

• Rated AC power - 230V, 13A, Single phase
• Max Supported Panel Power - 3000 Wp, Input Voltage Range (Vmp) - 65-130V
• Charge Controller - MPPT, Input Voltage 80-165 Voc
• Nominal Battery Bank Voltage - 48V
• Intelligent system with 32-bit DSP Controller which enables it to handle multiple algorithms efficiently
• The inbuilt MPPT charge controller extracts up to 30% more power from Panels
• Inbuilt isolation transformer to protect from grid surges and noise
• Selectable source priority: Choose source priority from solar, battery and grid
• User-friendly Informative LCD Display for time charging, Supply etc

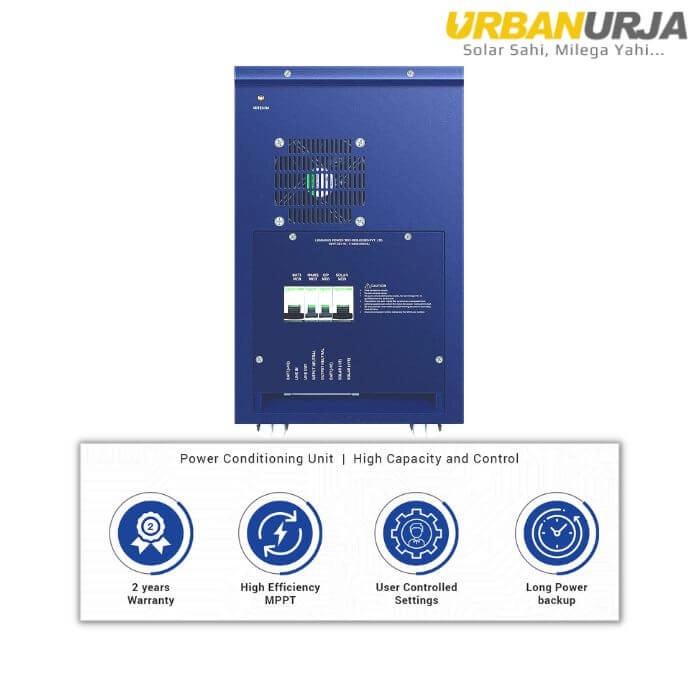

• Dual MCB protection against short circuit protection for AC and DC
• Safe for your home with comprehensive protection features such as short-circuit, reverse polarity, battery over-charge and battery deep-discharge.
• Pure sine wave output for safety and noiseless operation of connected appliances.
• Compliance with most of the National & International standards for safety and efficiency and reliability, such as IEC - 61683, IEC - 60068 - 1,2,14,30, IEC - 60529

Product Description:
NXT+ range of PCUs is the ideal solution for off-grid applications. Designed to offer control, the PCU intelligently optimizes battery charging and power to load among Solar, Battery and Grid power.

MPPT Charge Controller
Our solar PCU has the latest MPPT‚ (Maximum Power Point Tracking) charge controller. It enables you to extract maximum from solar power. It is 30% more efficient than normal PWM-based PCUs.

Priority Setting
Being a bi-directional PCU it allows customers the flexibility to set the priority setting based on their requirement of maximum energy saving, power backup only during power cut and power backup through the battery in areas where grid supply is not available.

Super Informative User-friendly LCD
A user-friendly LCD that displays important information like battery time of charge & discharge, Grid Off / available, Priority setting etc.

Safe for your home
Luminous Solar PCU is armed with comprehensive protection features such as short-circuit, reverse polarity, battery over-charge and battery deep-discharge. Its pure sine wave output ensures the safety and noiseless operation of connected appliances.

MNRE & IEC compliance
Solar PCU complies with all the National & International standards for safety and efficiency and reliability, such as IEC - 61683, IEC - 60068 - 1,2,14,30, IEC - 60529

Features:

• Material: Metal, Color: Multicolor
• MPPT charge controller to extract up to 30% more power from Panels
• Inbuilt isolation transformer to pr
