Ashapower 2500VA Rover LV MPPT Solar Pcu 24V Lithium Compatible Copper TX Inverter

Ashapower 2500VA Rover LV MPPT Solar Pcu 24V Lithium Compatible Copper TX Inverter



badge
badge
badge

Product details

ASHAPOWER 2.5KVA 24V ROVER LV SOLAR PCU



Introduction

The powerful budget-friendly solar energy extractor for home/office has a connected load capacity of 5 fans, 10+LED lights, iron box, computer, washing machine, refrigerator, TV, laser printer and a low HP induction motor pump when used with 2000watts solar PV panels and 24V 150-200Ah batteries. The integration of a highly efficient MPPT SCC (140Voc/50AMP), and 2.5KVA DSP pure sine wave inverter with a high power grid charger makes it unique in its class.

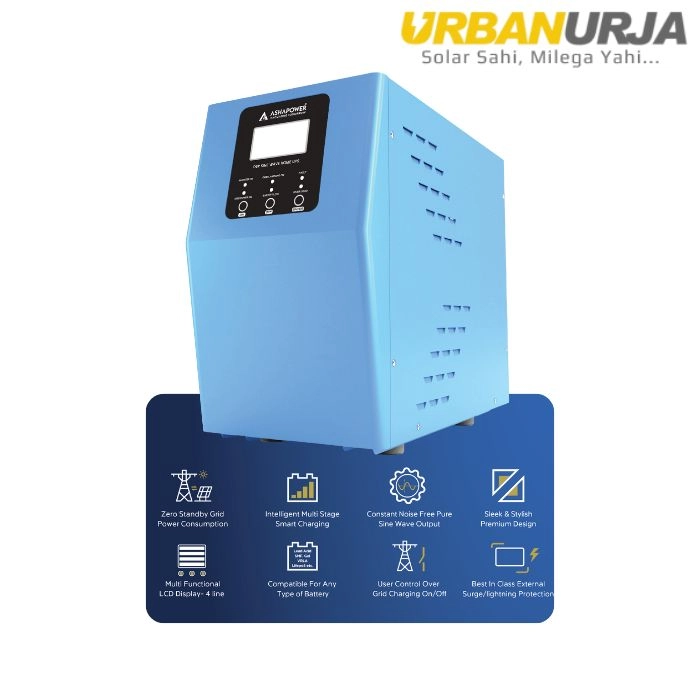

Salient Features

  • High Power Inverter with MPPT Integration: 140Voc-50Amp-2kwPV load and 2Kw Inverter combination assure continuous daytime heavy load operation without battery disturbance.
  • Standby zero grid power consumption: Once the battery is fully charged frequent relay-controlled isolation of grid power from the charging transformer ensures standby zero grid power consumption saving electricity.
  • Constant noise-free DSP pure sinewave output: Ensures the best life and flicker-free working of digital equipment.
  • Selectable solar/grid priority charging
    Helps customer to select charging mode as to the power conditions of the site
  • Customer control over grid charging ON/OFF
    Blocks battery charging from grid power saving electricity
  • Large 4Line multifunctional LCD front panel display
    Gives detailed and clear system information at a look
  • 3 Soft front panel all function control switches
    Helps easy finger-tip system control and function settings
  • No rocker switches behind the device
    Makes smart front panel hassle-free function and settings control
  • Intelligent true multi-stage smart solar and grid charging
    Bulk, Absorption, Float (User selectable battery charging voltage)
    Ensures prolonged battery backup and life
  • Battery charges even at a low grid voltage
    Suitable for places with low grid voltage areas
  • Customizable solar and grid priority modes
    Helps customer to set the power conditions of the site
  • High overload and surge load handling capacity
    Trouble-free running of loads with initial heavy input surge
  • MCB short circuit protection for grid power
    Ensures system safety and avoids frequent fuse changing
  • Overload, surge and short-circuit protection
    Protects internal component failure
  • All types of battery compatibility
    Supports tubular lead acid, flat, SMF, Gel, local batteries and branded
    Lithium batteries with BMS and active balancer
  • Unique ZMPT-based isolated grid sensing
    Reduces chances of MOSFET failure on lightning and external surges
  • Forced grid to solar mode shifting facility
    It helps customer to use maximum solar energy



Specifications:

Nominal Battery Voltage 24V DC

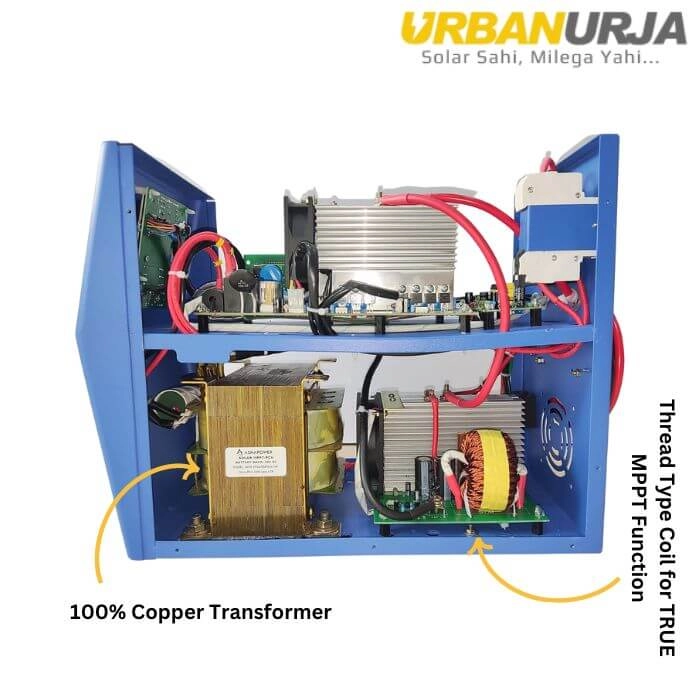

Transformer Coil 100% Pure Copper
Maximum PV Capacity 2000Wp
Max. Applicable PV Panel Voc 140V
Maximum solar Charging Current 50Amps (selectable)
Solar MPPT battery charging stages Bulk-Absorption-Float
Maximum MPPT tracking efficiency 98.9%
No load battery Power Consumption 0.7AMP +.3
Grid power battery charging stages Bulk, Absorption, Float
Maximum grid battery charging current 4 AMP TO 20AMP(selectable)
Standby grid Power Consumption Zero at idle stage
Humidity 0 to 90% RH (No dew)
Operating temperature -20 degrees to 65 degrees C
Storage temperature -30 degrees to 80 degrees C
Overload Protection From PV Pane YES
Over Charge Protection from grid and solar YES
Panel Reverse Polarity Protection YES
Battery Reverse Polarity Protection Optional
Dimensions – L x W x H (cm) 43X19.6X33.5
Net Weight (Kgs) / Gross Weight (Kgs) 23Kgs/24.65Kg

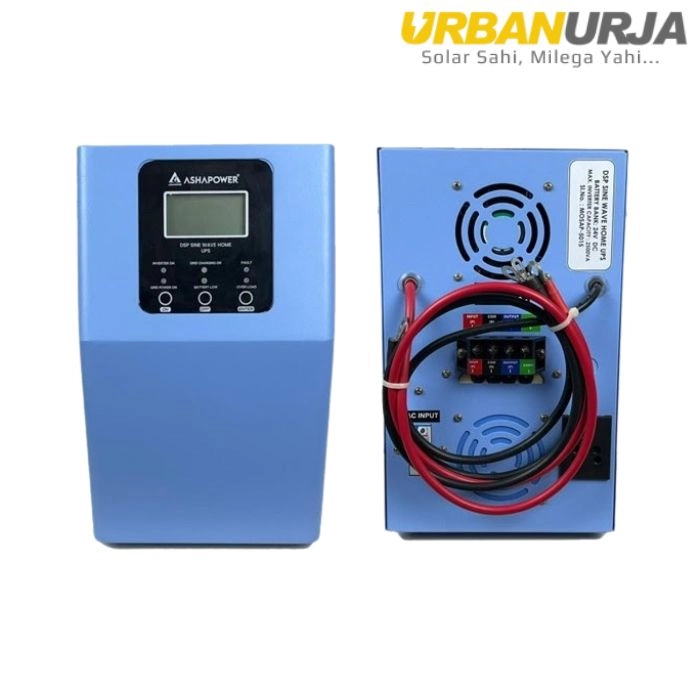

Connectors 6Way Input/Output Terminal block
Display 4 Line LC-Display
