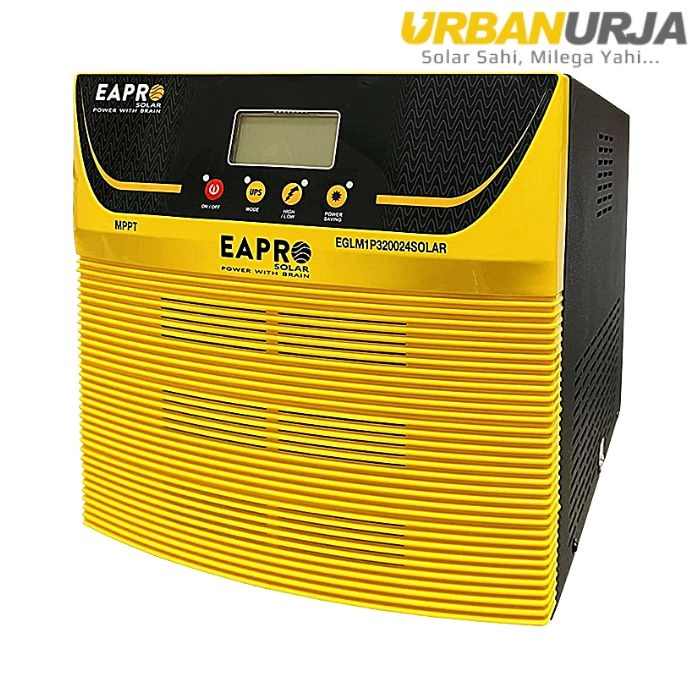

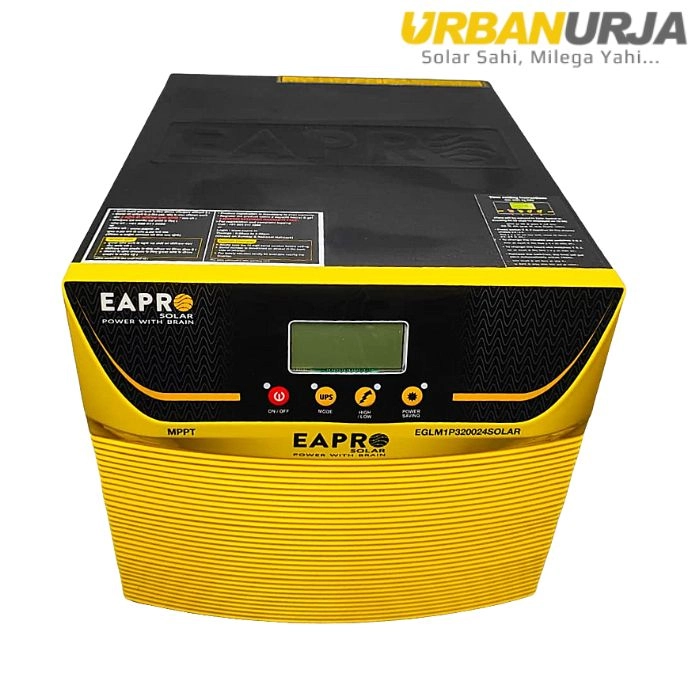

EAPRO 3000VA MPPT Solar PCU 24V Inverter

EAPRO 3000VA MPPT Solar PCU 24V Inverter



badge
badge
badge

Product details

EAPRO 3KVA MPPT SOLAR PCU



EAPRO is a global leader in manufacturing solar inverters and model EGLM1P320042SOLAR is powerful. Yet, compact MPPT solar PCU that comes with 0.8 power factor which means you can lift a load of 9.5 AMP load (such as 1HP submersible, 1.5 ton 5star inverter AC etc.) it's having an elegant and stylish look with a large LCD display & multifunction buttons.



Features:

  • Inbuilt 100A MPPT Solar Controller Supports panels up to 2400-2700W
  • VOC range 110V, 2x panels upto 55V Voc can be easily connected in series (Vmp 34V-88V)
  • Solar Battery Charging current settable 40Amp default (Settable 5Amp to 50Amp)

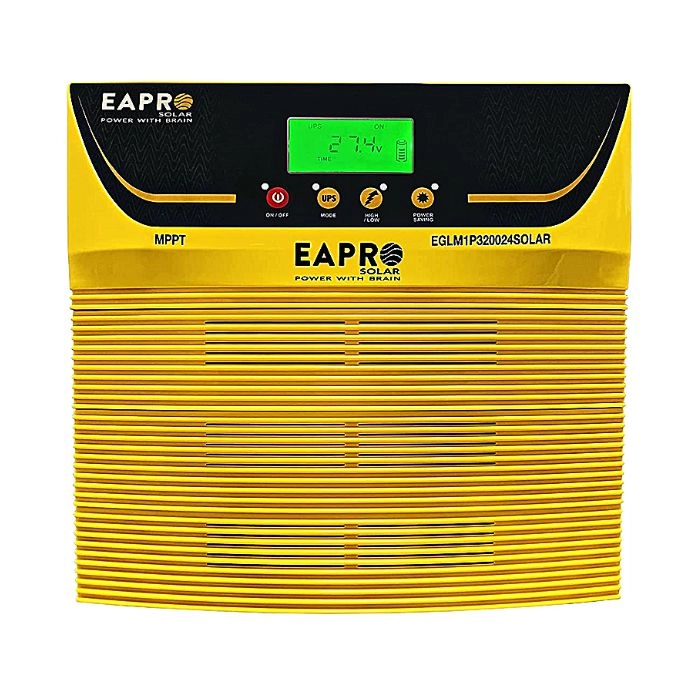

  • User-friendly Multicolored LCD Display
  • Grid Charging Enable/Disable Option
  • AC Load Support of 2400W, Run 1HP Submersible Pump or 1.5ton Inverter AC (5Star Rating)
  • 4 Power Saving Modes
  • Real-Time Clock (RTC) function
  • Warranty 24 Months by EAPRO + 6 Months additional on registering the product online



TECHNICAL SPECIFICATIONS

Sr.No TECHNICAL PARAMETERS SPECIFICATIONS - 3000VA /24V
A BATTERY MODE
A.1 No Load Current (Switch OFF) ≤ 180 mA
A.2 Nominal Battery Voltage 24V
A.3 Output Voltage @ No LOAD @Nominal Battery Voltage 225± 7 V
A.4 Output Frequency @ No LOAD 50 ± 1% Hz
A.5 Output Frequency @ Full LOAD 50 ± 1% Hz
A.6 Output AC Current @ Full LOAD 9.5± 0.2Amp
A.7 Discharging Current @Full Load 100± 1 Amp
A.8 Short Circuit > 300%
A.9 Voltage THD (linear load) ≤ 3%
B UPS MODE
B.1 Low Cut with Phase Match 180 ± 10V
B.2 Low Cut Recovery with Phase Match 9-12V Hysteresis from > Low Cut Voltage
B.3 High Cut with Phase Match 270 ± 10V
B.4 High Cut Recovery with Phase Match 9-12V Hysteresis from < High Cut Voltage
B.5 Change Over Time from Mains To UPS ≤ 10msec
B.6 Change Over Time from UPS To Mains ≤ 10msec
C NORMAL MODE
C.1 Low Cut with Phase Match 100 ± 10V
C.2 Low Cut Recovery with Phase Match 9-12V Hysteresis > Low Cut Voltage
C.3 High Cut with Phase Match 280 ± 10V
C.4 High Cut Recovery with Phase Match 9-12V Hysteresis < High Cut Voltage
C.5 Change Over Time from Mains To UPS ≤ 40msec
C.6 Change Over Time from UPS To Mains ≤ 10msec
D CHARGING MODE
D.1 Low Charging Current @ 220V AC (NC) 75% of H.C
D.2 High Charging Current @ 220V AC (HC) 20 ± 1.0A
D.3 Boost Charging Voltage (HC/NC) 28.8 ± 0.2V
D.4 Float Charging Voltage (HC/NC) 27.4 ± 0.2V
E Solar Charge Controller with Real-Time Clock
E.1 Solar Charge Controller MPPT CHARGE CONTROLLER (2400W / 100 Amp)
E.2 Charge Controller Type DUAL INPUT CHANEL INTERLEAVED MPPT
E.3 Max PV input Power 2500-2700 Watt
E.4 Max Solar Input Voltage (Vmpp ) 34V-88V
E.5 Max Solar DC Input Voltage ( Voc ) 110V
E.6 Max Solar Input Current 40 Amp
E.7 Solar Battery Charging Current (settable) 40 Amps. (default) (Settable 5A to 50A)



PROTECTION & TROUBLESHOOTING

F PROTECTIONS
F.1 Overload Protection with Alarm Over Load Shut Down After 6 Auto Retries;
F.2 Over Load Shut Down Reset Through ON/OFF Switch & Mains
F.3 Battery Low Alarm 21.6±0.4V
F.4 Battery Low Protection Battery Low Shut Down After 4 Auto Retries;
F.5 Battery Low Shut Down Reset Through ON/OFF Switch & Mains & Solar
F.6 Over-Temperature Protection with Alarm should be OK (90 ± 5 °C);
F.7 Short Circuit @ Mains Mode Mains MCB/Fuse trip
F.8 Short Circuit Protection (Battery Mode) Yes
F.9 Short Circuit Retry One
F.10 Short Circuit Reset Through ON/OFF Switch & Mains
F.11 Mains MCB Trip Yes
F.12 P.V. REVERSE PROTECTION  AVAILABLE



EAPRO's Off Grid 3KVA 24V MPPT Solar Pure Sine Wave PCU Comes with Great Exciting Features: Multi-Colored Big LCD Display, Advance User Configurable Settings like Battery Charging Voltage & Ampere from Solar and Mains/Grid, Battery Mains Reconnect & Battery Low Cut Voltage, Grid Charging Enable/Disable, Smart Solar Selection Logic based on built-in Real Time Clock (RTC) Advanced Technology makes this True MPPT based PCU with Sleek and aesthetic Design the most efficient & Long lasting PCU. This PCU will Support 2400W AC Load and Supports 1 HP Submersible Pump. Inbuilt MPPT Solar Controller (Supports Solar Panels max up to 2700 Watts). Best in segment VOC range 36-110V. You can connect any Wattage 2 Panel in Series Connection
