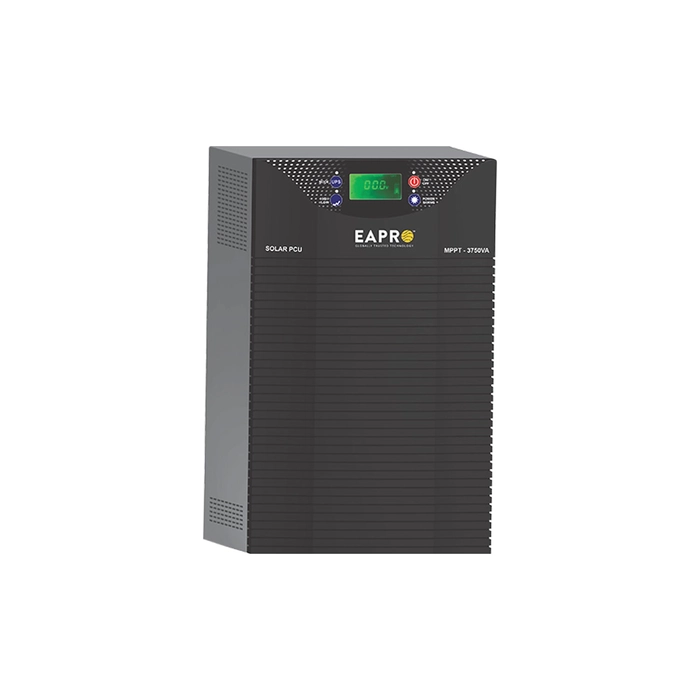

EAPRO 3750VA MPPT Solar PCU Inverter 3.75kVA 48V

Brand: EAPRO

Highlights:

• Rated AC power - 3750VA.
• Max Supported Panel Power - 3840 Wp, Input Voltage Range (Vmp) - 70V to150V.
• Charge Controller – MPPT, Input Voltage V(oc) -188V .
• Nominal Battery Bank Voltage – 48V (Supports 4 Batteries).
• 24 Months Warranty.
• Provision for setting of critical parameters as per user requirement like Time, Boost Battery Voltage, Solar Max charging current, Battery Low Cut voltage etc.
• Efficient Current Charging at Low Mains in Normal Mode only.
• Intelligent Battery Charging and Charge Sharing with Mains/Charging by solar power only.
• Dual Charging current option for Normal Charging and High Charging.
• High Power new generation MOSFET capable of handling high inrush/surge current.
• Intelligent Multicolor LCD display for all system parameters .
• Programmed inbuilt cooling fan.
• Inbuilt fully regulated charge controller.

Features:

• Eapro 3750 is an MPPT Solar PCU designed to extract maximum power from Solar Panels to save electricity bills
• Eapro 3750 is 3.75kVA 48V Model (requires: 4 x 12V Solar Batteries)
• Inverter Technology Appliances like AC/Fridge can be easily run, Also Water Pump 1HP of Crompton or Kirloskar are successfully tested
• We recommend user to choose high efficient solar panels from our Solar Panels section to get maximum output.
• Please note: installation not included and user need to hire an expert engineer or you can contact UrbanUrja team for arrangements of installation which will be charged extra. All the warranties will be given by EAPRO as per their policies.
• Multi Channel Interleaved MPPT Technology with Tracking efficiency-99.5%, More efficient and high reliable. Smart Solar Selection for max. utilization of Solar Power.
• Intelligent system with DSP Controller which enables it to handle multiple algorithms efficiently. Inbuilt isolation transformer to protect from grid surges and noise.
• User friendly multicolor LCD Display for time, charging current, Supply etc. Hybrid charging : Charging from both mains and solar. Intelligent overload sensing circuitry with auto retry facility.
