Product details
Features:
Unique Features
Special Features:
Extensive electronic protection
Lithium Solar PCU ensures safety, prevents reverse flow from the battery to the solar array, provides load short circuit protection, solar battery through DC fuse, overload protection, input low or high, output low/high or solar panel provides reverse protection.
Utilizes maximum power available from the solar panel
The Lithium solar PCU senses the point of full power available in the solar panel and charges the battery with this maximum power. Therefore, at any given time the battery is charged with the maximum possible power.
LCD display
It has an LCD display for a better user interface that displays battery voltage, current charge, current discharging current, output voltage, output frequency, output load percentage, input voltage, input frequency, solar voltage, solar current and solar energy.
Features:
System Rating | 1kVA |
Operating DC Voltage | 12.8 Volt (in-built 104Ah Lithium Battery) 1331.2 Watts |
Maximum PV Power Recommended | 1kW |
PV Input Voltage (VoC) | 18-50 >=98% |
Solar Charge Controller Technology | MPPT |
Total In-built Charge Controller | 1 no. |
Switching Element | IGBT |
Controller | DSP |
Efficiency | 98% |
Max Load Current | 3.5 AMP |
Grid Charging Option | Available |
MCB for AC | in-built |
Output Waveform | Sinewave |
Output Supply Phase | 1 Ph IN & OUT |
IT Load/UPS Mode | Available |
Output Voltage Low | 185 |
Output Voltage High | 255 |
Nominal Frequency | 50Hz |
Noise @ 1Mtr | 50dB |

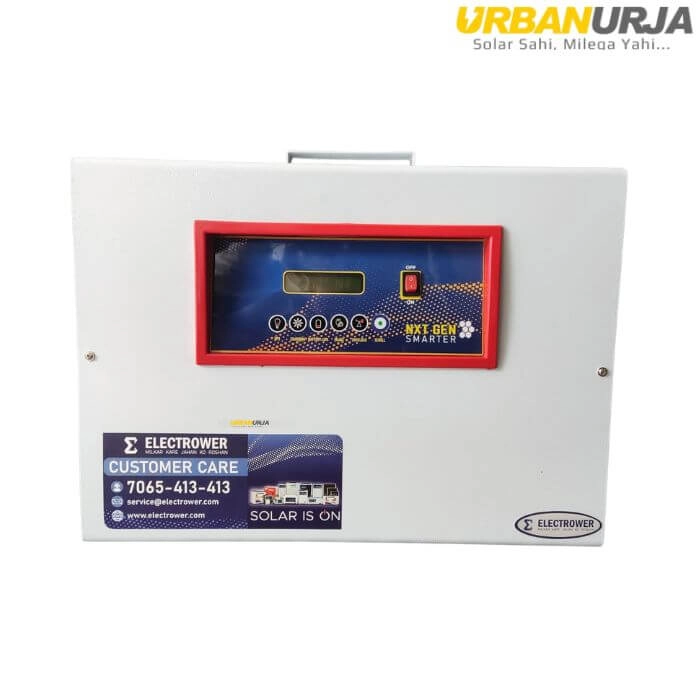

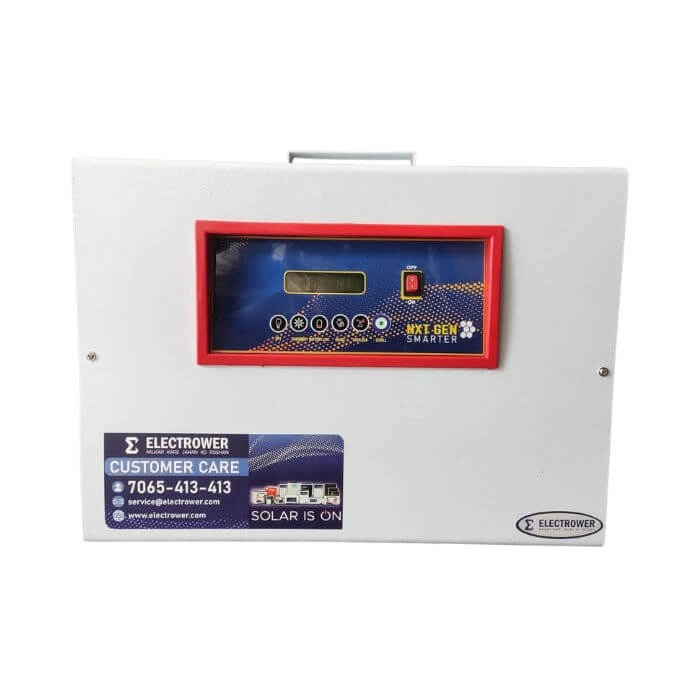

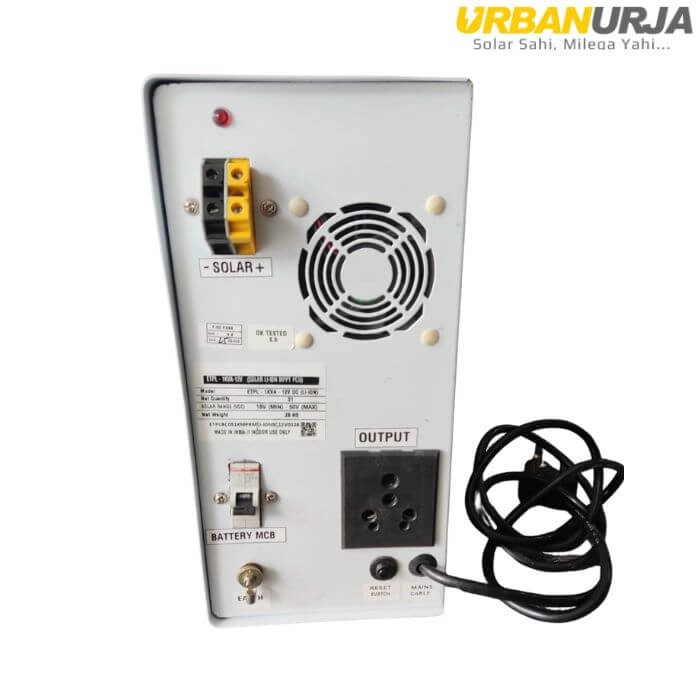

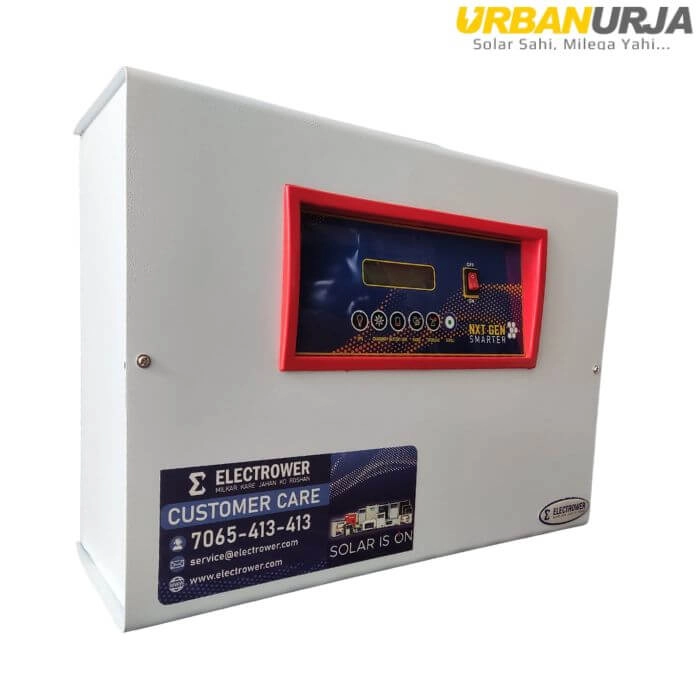

Contents: 1x Electrower Lithium 1kVA Solar PCU (in-built Battery)
Latest 2023, June Design
