MC4 Solar Panel Y Branch 3 to 1 Cable Connector Parallel Solar Wire Connector Y-Type Y4 Coupler Combiner (1 Pair)

MC4 Solar Panel Y Branch 3 to 1 Cable Connector Parallel Solar Wire Connector Y-Type Y4 Coupler Combiner (1 Pair)



badge
badge
badge

Product details

UrbanUrja is experienced in photovoltaic connector production.
We has passed ISO9001 management system certification.

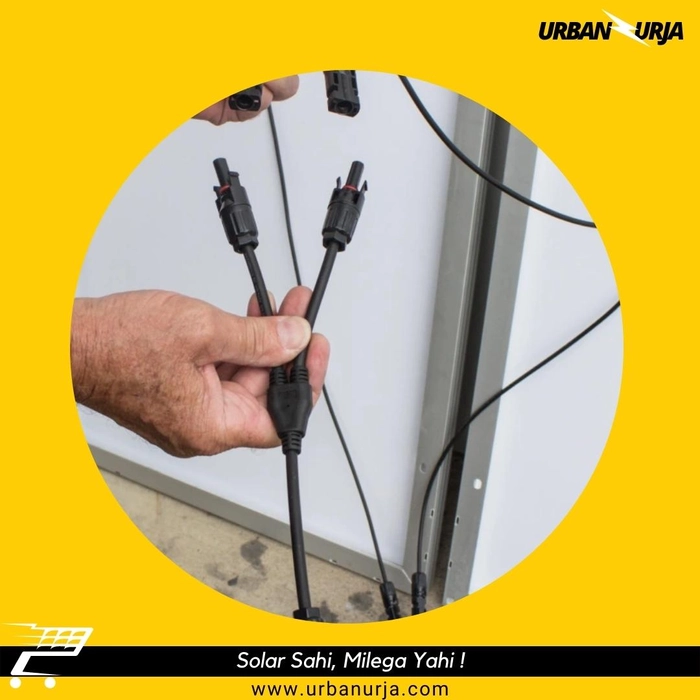

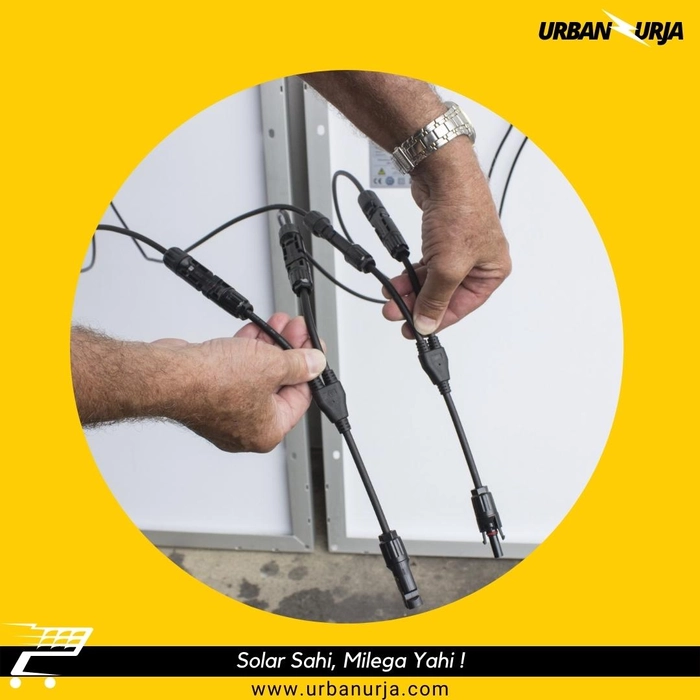

UrbanUrja Solar Branch Connectors are used for parallel connection between solar panels (PV modules). And it will maintain the voltage of your panel configuration to match your battery size. Perfectly compatible with photovoltaic solar systems.

Specifications

  • Brand: UrbanUrja
  • Model: MC4-Y4
  • Rated Current:30A
  • Insulation Material:PPO
  • Contact Material: Copper Tin Plated
  • Rated Voltage:TUV 1000V DC / UL 600V DC
  • Test Voltage:TUV 6000V AC (50Hz,1Min)/UL 2200V DC (50Hz,1Min)
  • Contact Resistance:≤1mΩ
  • Pollution Degree:2
  • Safety Class: II
  • Ambient Temperature:-40℃~+85℃
  • Highest Temperature:+125℃
  • Flame Class:UL94-V0
  • Terminal Connection:Pressure Welding
  • Insertion / Withdrawal Force: ≤50N / ≥50N
  • Waterproof Class:IP67 suitable for outdoor harsh environments
  • Suitable for Cables: 2.5mm²( AWG14 ), 4mm²( AWG12 ), 6mm²( AWG10 )

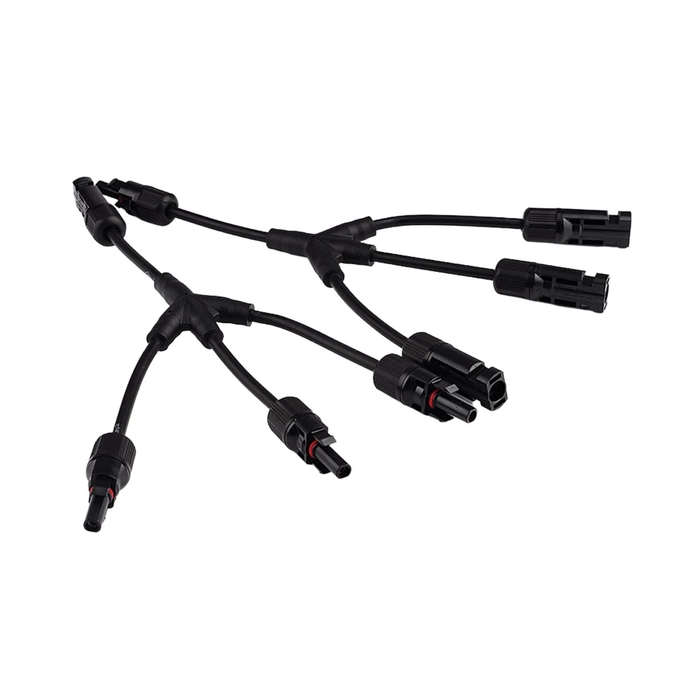

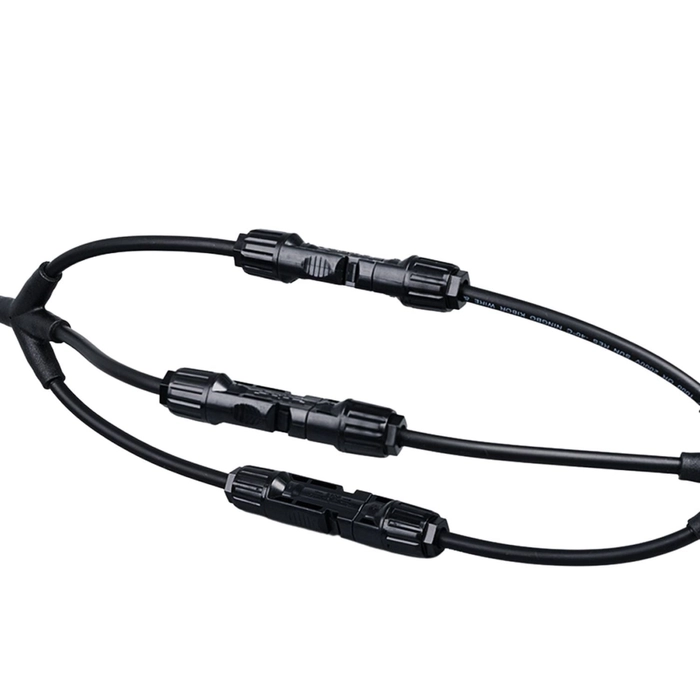

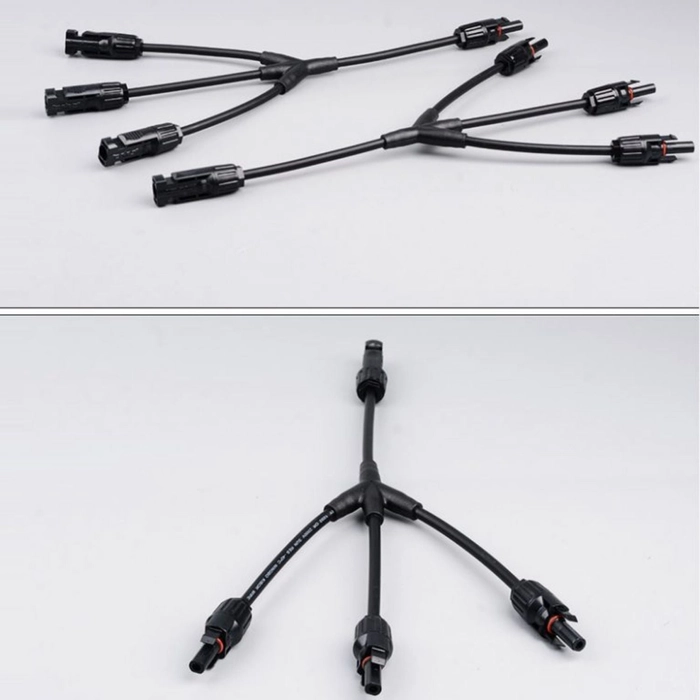

    【Y4 Branch Connector】1 male to 3 female(M/FFFF) and 1 female to 3male(F/MMMM). It is compatible with solar connectors in 10AWG to 14AWG. It could be used for connecting two solar panels in parallel.

    【Waterproof and Durable】 An IP67 WATERPROOF RING on connection is perfect to seal out water and dust to prevent corrosion. It is stable and safe with the built-in lock which is durable in outdoors environment.

    【High Security】PPO insulation flame retardant material with excellent aging resistance and UV endurance, can resist severe weather such as heavy rain, snowstorm or heat for a long time. The high-quality material ensures that it can works stably at a temperature of -40 ℃ ~ + 125 ℃.

    【Easy Installation】Male is easy to lock and open from Female. The connector is stable and safe with the built-in lock which is durable outdoors.

    【Customer Service】URBANURJA is experienced in photovoltaic connectors production. We are dedicated to provide customers with high quality product through constantly improvement with 24*7 friendly customer service.


    Package Include:
    1 Pair * 3-in-1 Solar Y Branch Connectors:
    (1pc* MMMF Solar Y Branch Connector 1pc* FFFM Solar Y Branch Connector)
