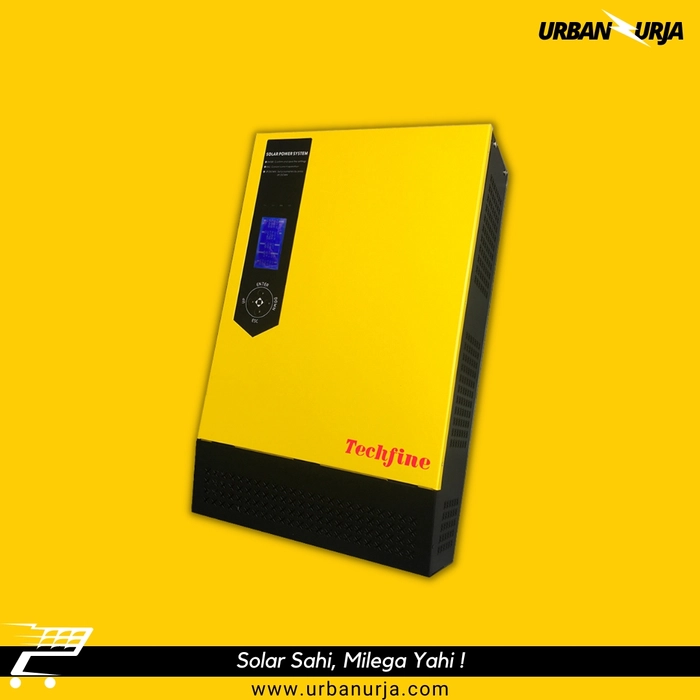

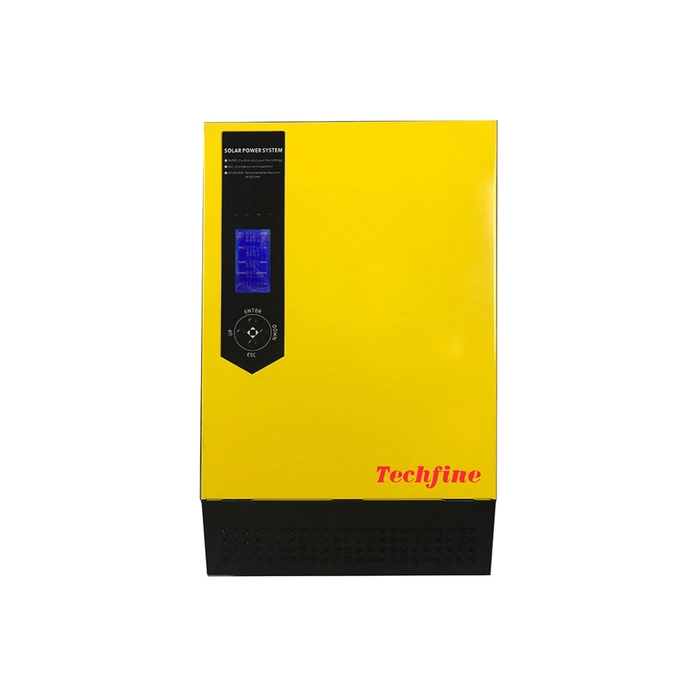

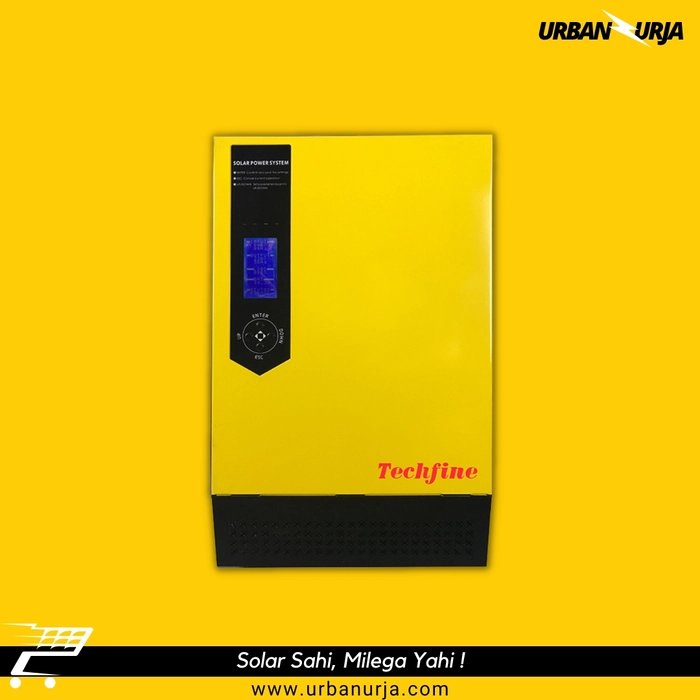

Techfine 3kW 24V Off-Grid Lithium solar Inverter VE3024

Techfine 3kW 24V Off-Grid Lithium solar Inverter VE3024

per piece


Product details

Techfine VE3024 is a 6th-generation off-grid solar inverter technology, with built-in MPPT technology.



  • Pure sine wave output.
  • Max. DC input power of 1600W (30-150VDC)
  • Higher charging and discharging power of 60A & 1600W.
  • Compatible with solar panels and wind turbines as well.
  • 2-year warranty and can be expendable for up to 5 years.
  • Transformerless design support both Lead Acid and Li-ion batteries
  • Transformerless design & True MPPT technology ensure zero loss in solar energy production
  • A Transformer Inverter requires 2500W panels to provide the same solar output (transformerless design inverter systems are almost 99% efficient)


Specifications Battery input-data
Battery Type Lead–acid or Lithium-ion compatible
Battery Voltage (V) 20~30V
Max. Charging Current (A) 60A
Max. Discharging Current (A) 6A
Charging Curve 3 Stages / Equalization
Charging Strategy for Li-ion Battery Self-adaption to BMS
Specifications PV String Input Data
Max. DC Input Power(W)  1600-2000W
PV input Voltage (V)  150V
MPPT Range (V) 150-425V
Full Load DC Voltage Range  250~425V
Start-up Voltage (V)  125V
PV input Current (A)  13A
Max. PV Input Voltage (V)  500
No. of Strings Per MPPT Tracker 1/1
Specifications AC Output Data
Rated AC Output and UPS Power(W) 3000
Max. AC Output Power(W) 3300
Peak Power (off-grid) 2 times of rated power, 10S
AC Output Rated Current(A) 13.6/13
Max. AC Current(A) 15/14.3
Max. Continuous AC Passthrough(A) 35A
Power Factor   0.8 leading to 0.8 lagging
Output Frequency and Voltage  50/60Hz; 220/230Vac (single phase)
Grid Type Single Phase
Current Harmonic Distortion THD<3%(Linear load<1.5%)
Specifications Efficiency
Max. Efficiency 97.60%
Euro Efficiency  96.50%
MPPT Efficiency 99.90%
Specifications Protection
PV Input Lightning Protection  Integrated
Anti-island Protection Integrated
PV String Input Reverse Polarity Protection  Integrated
Insulation Resistor Detection  Integrated
Residual Current Monitoring Unit Integrated
Output Over Current Protection  Integrated
Output Shorted Protection Integrated
Output Over Voltage Protection  Integrated
Surge Protection DC Type ll / AC Type ll
Specifications Certification & Standards
Grid Regulation EN50549-1, VDE0126, IEC61727, VDEN4105, G99, CEI0-21, NRS097, NBR16149/16150, RD1699
Safety Regulation IEC62109-1/-2
EMC IEC62109-1/-2
Specifications General Data
Operating Temperature Range(°C) -25~60°C,>45°C Derating
Cooling   Natural Cooling
Noise(db) <30 db
Communication with BMS RS485
Weight (kg) 14
Size (mm) 365.5W×470.5H×261D
Protection Degree IP65
Installation Style Wall-mounted
Warranty  2Years


Content: 1x Techfine 3kW 24v
