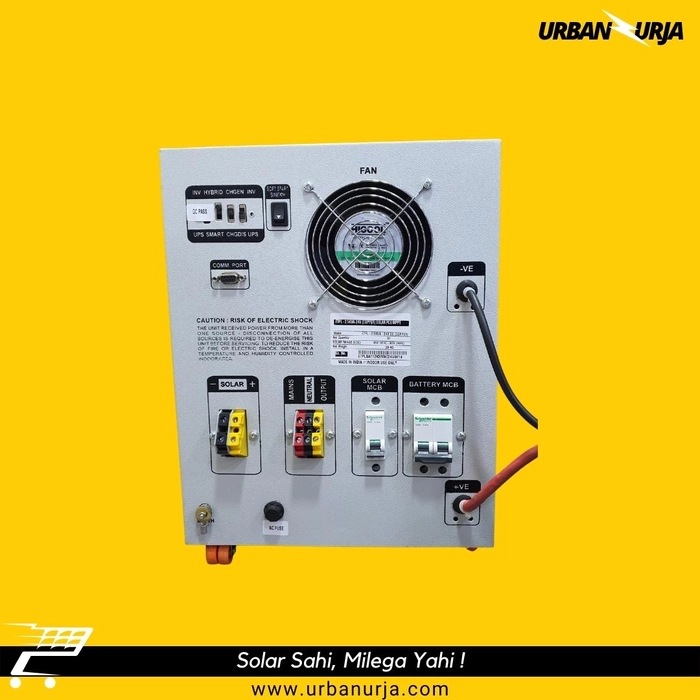

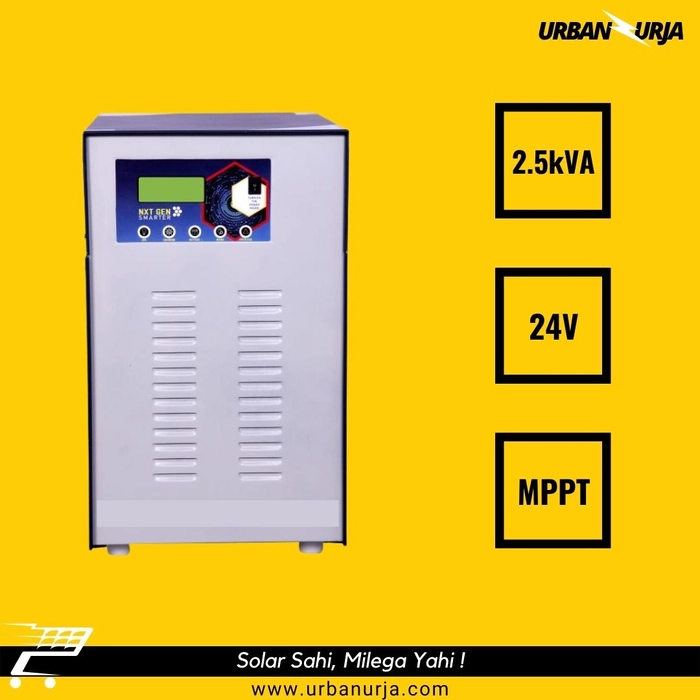

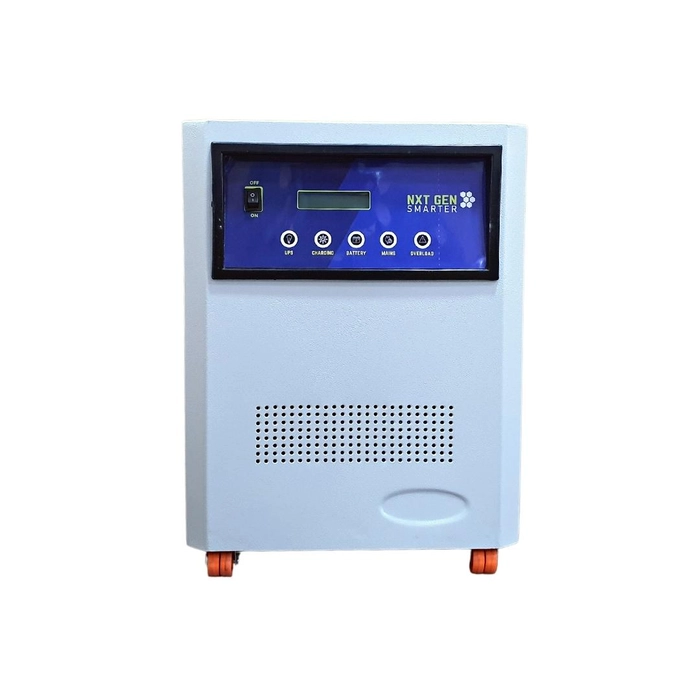

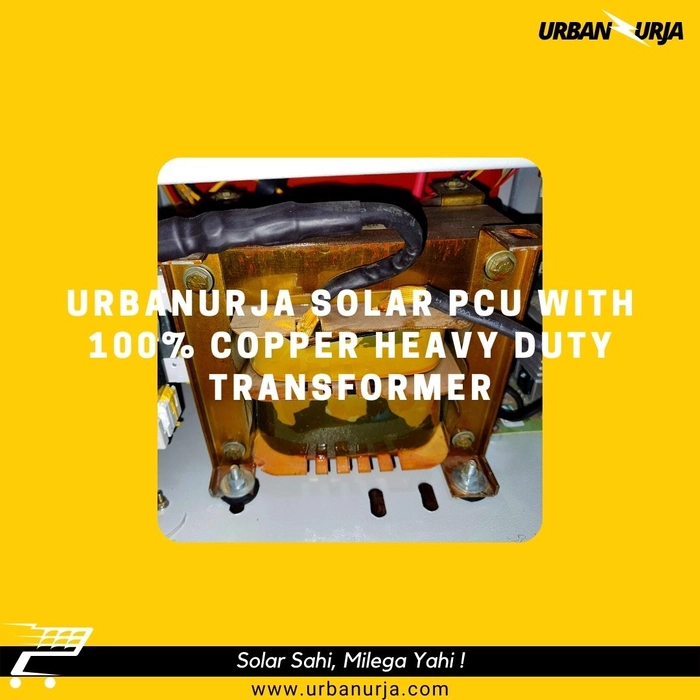

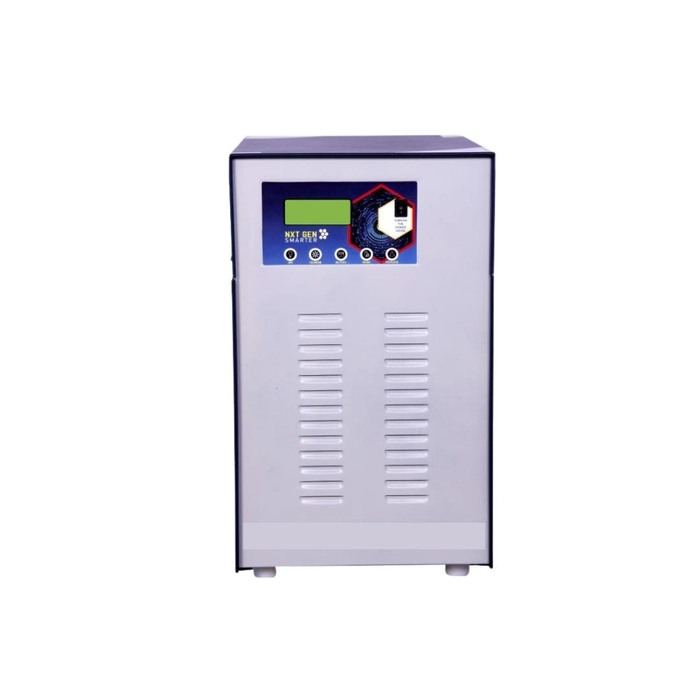

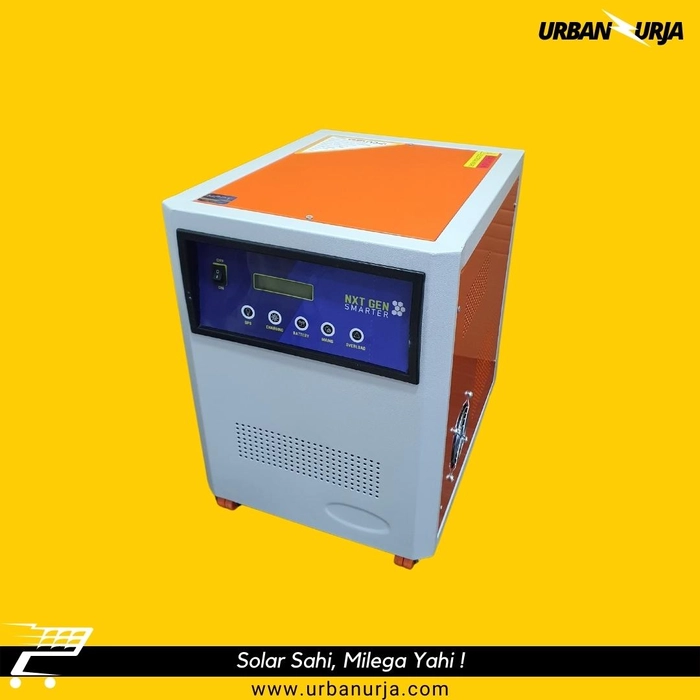

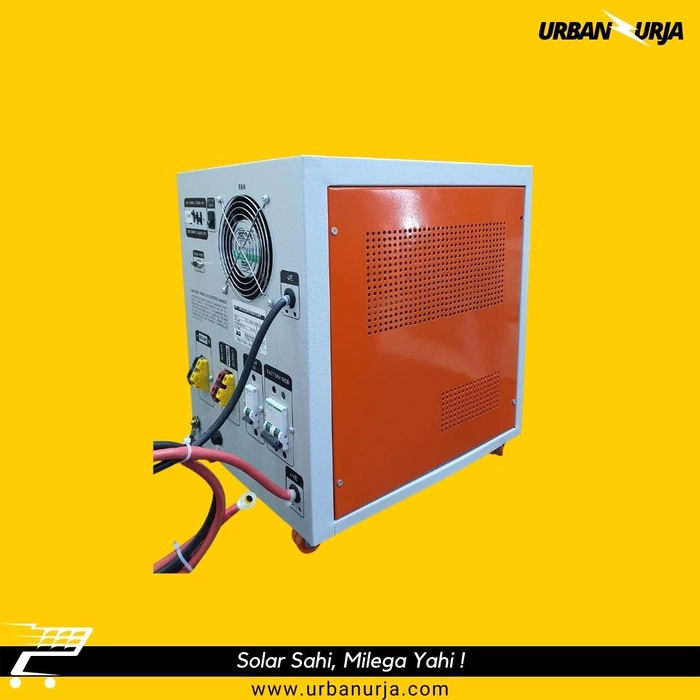

UrbanUrja Superb 2500 VA Sinewave True MPPT Solar Inverter 2.5kVA 24 Volt PCU (with Copper Winding Transformer)

UrbanUrja Superb 2500 VA Sinewave True MPPT Solar Inverter 2.5kVA 24 Volt PCU (with Copper Winding Transformer)

per piece



badge
badge
badge

Product details

UrbanUrja new Superb 2500 is a mppt based solar power conditioning unit (PCU) Inverter. It is one of best choice solar inverter in 2.5 kVA range that works with 2 Batteries of 12Volt. Instead of buying normal inverter, It is strongly recommended to buy MPPT based pcu with Copper Winding Transformer.

We use advanced MPPT technology in our Solar off-Grid PCU that can simultaneously run the load and charge the battery. suitable lead- Acid batteries, as well as flooded, sealed and gel type, these controllers check the output of PV module, Supply Power to a DC load and fixes the power issues that PV module Can produce to charge the battery. Our Solar off-Grid MPPT PCU stand apart from the rest because of their high- quality design and multiple features we have packed into it to make your life easier.

2-years-warranty

  • 30% MORE EFFICIENT
  • LCD DISPLAY
  • ADVANCED DSP CONTROLLER FOR EFFICIENT WORKING
  • CHARGING FROM MAINS UPTO 90 Volts
  • Max Panels Support upto 2350 Watts (325-550 Watts / 24Volt Panels)
  • Able to run 1HP Water Motor Pump (Tested Brands: Lubi, Havells, Kirloskar, Usha etc)
  • Able to run 5 Star inverter AC of 1.2 Ton Capacity



Technical Specifications

Capacity

2.5 kVA

Inbuilt charge controller

True MPPT 60AMP

Max. panel support

2000-2350 watts panels

Max. PV voltage

36-90 volt

No. of batteries required

2 (100 - 220 Ah)

Display type

LCD

Top Features Big Display. Built-in Energy Meter Maximized Solar Usage through Intelligent modes. Remote monitoring and Data logging with lot 40% less panel required than other PCUs RS-232(industrial  Standard MODBUS) Incorporated with Microchip  and DSP Engines IGBT Based design and fast charging wide range MPPT input configurable user Setting 6 stages battery charging Multiple Battery Selection Sleek & Aesthetic design Works as standalone solar inverter in case of No- grid Safety and protections.
Battery Charging Stages 5( Software, Boost, Absorption, Float, Equalise)
Eifficency >97%
Weight  35kG



 Now with Grid Charging Enable / Disable Option



Made with high grade quality, technically advanced Superb Solar PCU is an innovative solar inverter, that gives you the joy of uninterrupted power supply. It's is packed with exciting features like LCD Screen, Advanced DSP Controller and more.

UrbanUrja Superb PCU is 30% more efficient than usual PCUs.
