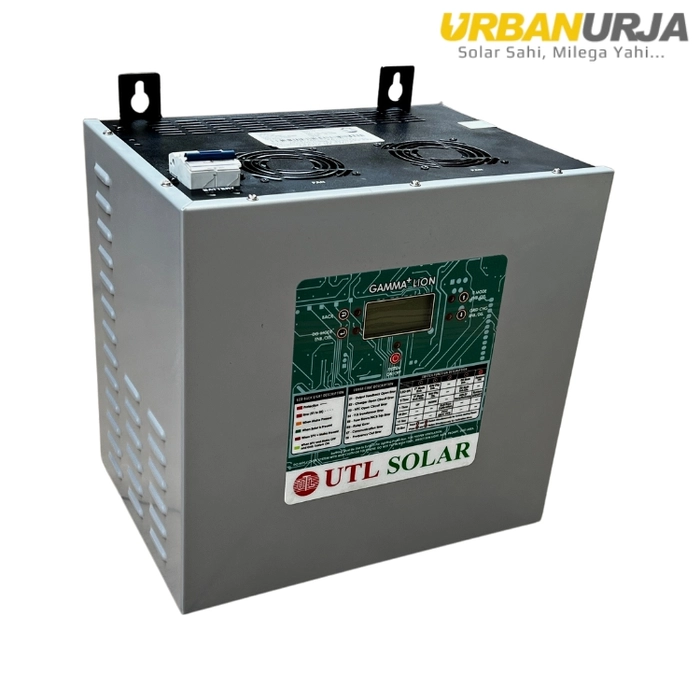

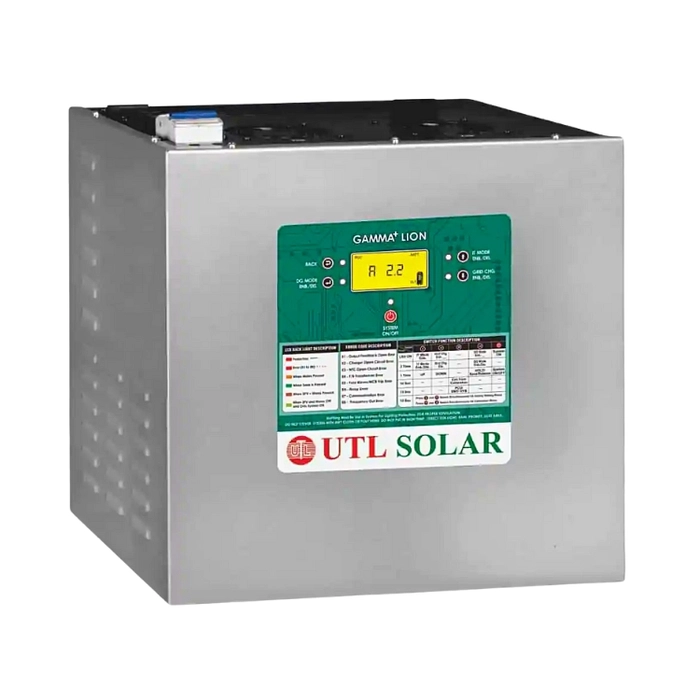

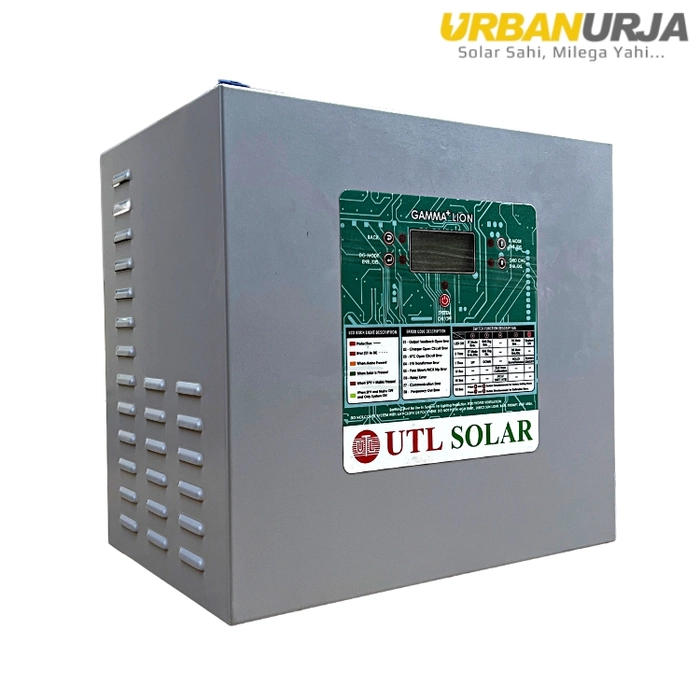

UTL Gamma Plus 1kVA Lithium MPPT solar PCU Inverter - in-built LiFePO4 Battery

UTL Gamma Plus 1kVA Lithium MPPT solar PCU Inverter - in-built LiFePO4 Battery



badge
badge
badge

Product details

UTL Gamma plus mppt solar inverter is a perfect Inverter for homes with an in-built mppt solar charge controller of 40 Amp which supports up to 1,000-1100 watts of solar panel. It supports both 12 or 24-volt solar panels. MPPT technology produces up to 30% more electricity as compared to PWM technology.






Technical Specifications

Capacity

1 kVA (1000VA) 800 Watts

Inbuilt charge controller

rapid MPPT

Max. panel support

1000 watts panel

Input Voc Range

15-49.5 volt

No. of batteries required

 in-built 100Ah 12.8V Lithium Battery

Display type

Multi-color LCD






Features:

  • Controller based design, Sine Wave
  • Built in MPPT Solar Charge Controller
  • Multi color LCD Display
  • Zero Battery Management and Long Battery Life
  • Multi-functional smart switches
  • Preference to Solar Power over Grid Power
  • Priority Selection: PCU, Smart & Hybrid for saving energy and Money

UTL Gamma+ 1000VA rMPPT Solar Inverter

  • Gamma+ LiON 1000VA gives you output of 220V AC / 700-800 Watts
  • in-built 100Ah 12.8V Lithium Battery
  • Comes with 5years warranty on Inverter + Battery

1kW panels of 24v can be connected (in parallel) as per following:

 MONO / POLY 24V
1 to 2 panels 445 - 550 Watts 24V
1 to 3 panels 315 - 400 Watts 24V
1 to 4 panels 220 - 265 Watts 24 Volt
1 panel 690 - 700W
  • Gamma+ comes with Digital coloured back-light display which shows all the data
  • Settings can be customized easily
  • PCU Mode for Urban areas with fewer power cuts
  • SMART mode is for Semi Urban areas with power cuts
  • HYBRID mode is for Rural areas with maximum power cuts
  • Portable Solar Inverter (can be taken along anywhere)
