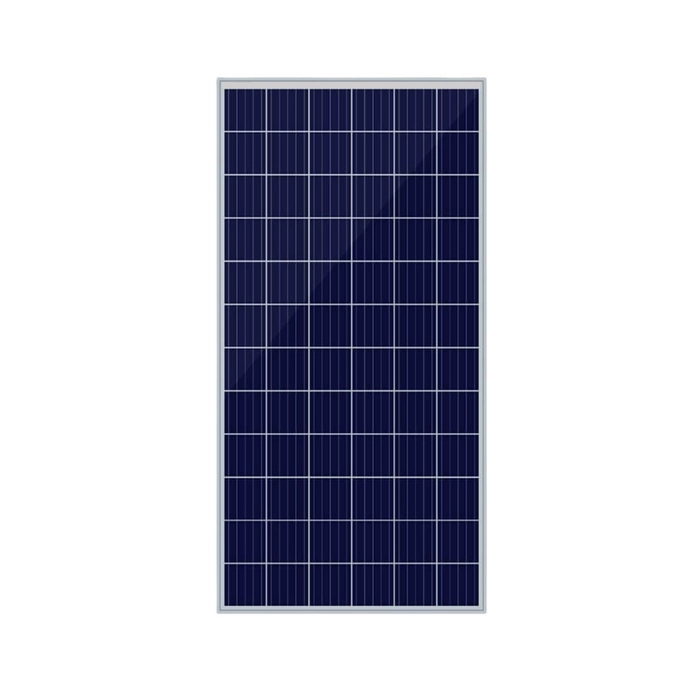

UTL Solar 335 Watts 24Volt Poly Panel (Pack of 2)

UTL Solar 335 Watts 24Volt Poly Panel (Pack of 2)

per piece

Product details

Brand: UTL Solar

Features:

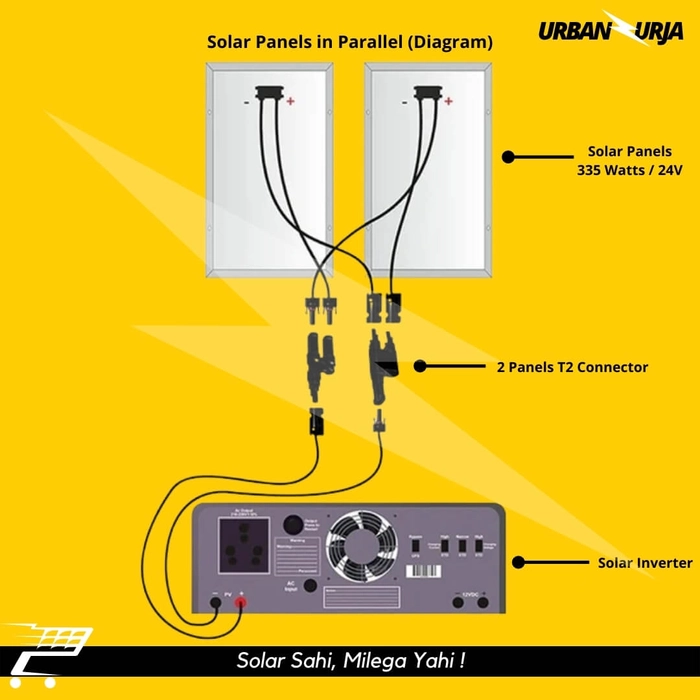

Versatile: Perfect for 24-volt battery charging or multiple panels can be wired in series for 24/48-volt battery charging or for grid-tied applications.

Durable: Withstand high wind and snow loads; resistant aluminum frame which allows the panels to last for decades. Compatible with on-grid and off-grid inverters.

Performance: Cell Conversion efficiency > 17.95 %

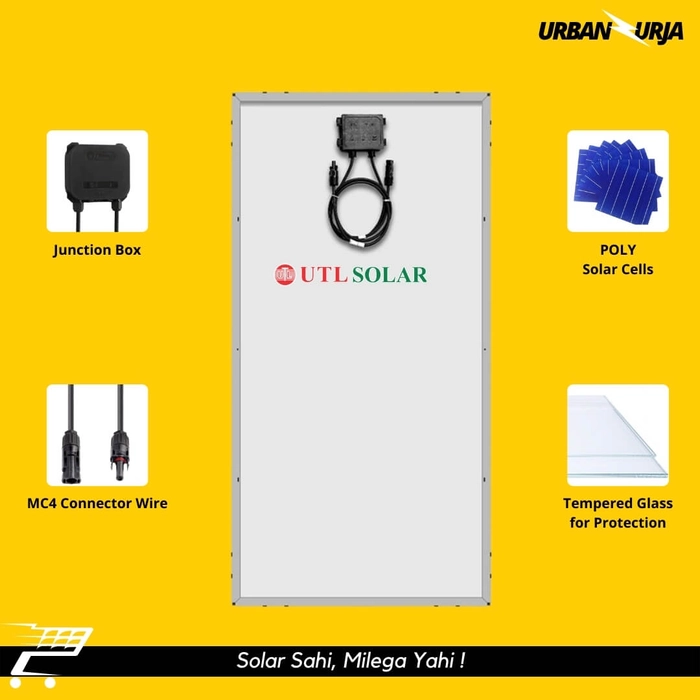

Reliable: Diodes are Pre-installed in Junction-Box with a pair of Pre-attached 1M wire & MC4 connector.

ELECTRICAL CHARACTERISTICS OF SPV MODULES
Maximum Power at STC (Pmax)	24V/335Wp (-0 to +3%)
Open circuit Voltage (Voc)	46.16V
Voltage at maximum power (Vmp/Vmax)	39.0V
Short Circuit current (Isc)	9.09A
Current at maximum power (Imp/lmax)	8.60A
Maximum Module Efficiency (%)	17.95%
Operating Temperature	-40°C to +85°C
Maximum System Voltage	1000/1500VDC iec
Maximum Series Fuse Rating	20A
